User-defined column aliases

User-defined column aliases let you define custom names for data columns in ThoughtSpot — tailored to different audiences, languages, teams, or tenants — without changing the underlying data model.

ThoughtSpot models often include generic user-defined field (UDF) columns — for example, UDF1, UDF2 — whose meaning varies depending on which organization or client group is accessing the data. UDF column aliases let you map these generic column names to meaningful display names for each audience, without duplicating the underlying model.

For example, UDF1 might display as Region for one client group and Department for another — all from a single shared model.

How column aliases work

An alias is a display name that ThoughtSpot resolves at query time based on one or more of the following criteria:

Criteria Description

ThoughtSpot group

The group or groups the user belongs to in ThoughtSpot.

ThoughtSpot org

The org the user is accessing ThoughtSpot from.

User locale

The language/region setting associated with the user (for example, EN-US, FR, SE).

At least one criterion must be specified for each alias definition. You can combine criteria in a single row. Use TS_WILDCARD_ALL in any criterion column to indicate that the alias applies regardless of that criterion’s value.

Alias resolution order

When a user searches or views a Liveboard, ThoughtSpot evaluates alias definitions and applies the first matching alias found for that user. If a user belongs to multiple groups that each have an alias defined for the same column, no alias is applied and the default model column name is shown instead.

Scope and restrictions

  • Alias definitions can only be created and managed in the owning org. You cannot create, download, or delete alias definitions from a published org.

  • The maximum number of aliases per cluster is 500,000.

  • Aliases apply to column display names and descriptions. They do not apply to column names shown in the model editor — the base column name is always shown there.

  • Spotter support for UDF column aliases is not available in this release.

Define aliases

You can define UDF column aliases using any of the following methods:

CSV upload

Prepare a CSV file with the following columns. The Locale, Org, and Group columns are optional but at least one must be present and populated.

Column Required Description

Column Name

Yes

The base column name as it appears in the model.

Locale

No

A BCP 47 language tag, for example EN-US, FR, SE. Use TS_WILDCARD_ALL to match all locales.

Org

No

The ThoughtSpot org name. Use TS_WILDCARD_ALL to match all orgs.

Group

No

The ThoughtSpot group name. Use TS_WILDCARD_ALL to match all groups.

Display Name

Yes

The alias to display for users matching these criteria.

Display Description

No

An optional alias for the column description.

Example: group-based aliases

The following CSV defines different display names for the UDF1 column based on the client group:

Column Name,Group,Display Name
UDF1,client1,Region
UDF1,client2,Country
UDF1,client3,Product

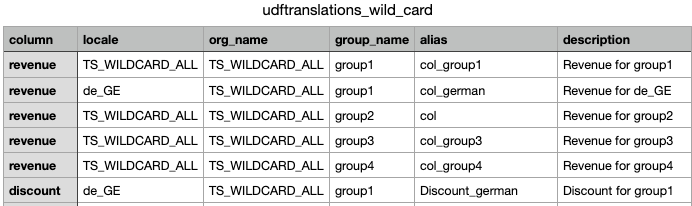

Example: group and locale-based aliases

The following CSV combines group membership and locale to define localized display names:

Column Name,Locale,Group,Display Name,Display Description
Revenue,EN-US,Admin,Company Revenue,Total revenue earned by the company.
Revenue,EN-US,Data Management,Cleaned Revenue,Revenue adjusted for anomalies.
Revenue,EN-US,TS_WILDCARD_ALL,Total Revenue,Total revenue across company
Revenue,EN-UK,Admin,Company Revenue,Total revenue earned by the company.
Revenue,EN-UK,TS_WILDCARD_ALL,Total Revenue,Total revenue across company

To upload a CSV file:

  1. In ThoughtSpot, open the model you want to add aliases to.

  2. Select the Aliases tab.

  3. Select Upload CSV.

  4. Select your CSV file and confirm the upload.

TML import and export

Alias definitions are stored as a separate TML object associated with the model, not embedded within the model’s TML file itself. You can download, edit, and re-upload alias definitions using TML APIs or the model editor.

Typical workflow:

  1. Maintain alias definitions in a source database table.

  2. Write code to generate TML from that table.

  3. Use the ThoughtSpot TML REST API to upload the alias definitions to the model.

  4. Optionally, load the database table as a ThoughtSpot table to provide a UI for reviewing alias definitions.

Git integration

If your team uses ThoughtSpot Git integration, alias TML objects are included in the set of associated objects downloaded with the model. You can commit alias definitions to your repository and deploy them as part of your standard CI/CD pipeline.

Monitor alias usage

Use the REST API to check how many aliases are defined in your cluster and on individual models.

Fetch alias count

GET /api/rest/2.0/metadata/translations/fetchAliasDetails

Parameter Type Description

metadata_identifier

String

GUID of the model to query. If omitted, returns counts across all models in the cluster.

getCountPerEachModel

Boolean

When true, returns a per-model breakdown of alias counts.

Example response

{
  "status": {
    "code": "OK"
  },
  "total_count": 550,
  "translation_counts": [
    {
      "model_name": "Sales Model",
      "guid": "4da3a07f-fe29-4d20-8758-260eb1315071",
      "aliases_count": 150
    },
    {
      "model_name": "Finance Model",
      "guid": "9ab1c23e-ab12-5e31-9869-371fc2426182",
      "aliases_count": 200
    }
  ]
}

Access to this API requires the user to have edit access to the specified model and either the DATAMANAGEMENT or CAN_MANAGE_WORKSHEET_VIEWS_TABLES privilege.

Limitations

  • Aliases apply to Search Data and Liveboards. They do not currently apply to Spotter natural language queries.

  • Aliases are not shown in the model editor — the base column name is always displayed there.

  • If a user belongs to multiple groups that each define a different alias for the same column, the base column name is shown (no alias is applied).

  • Alias definitions can only be managed from the owning org. Published orgs cannot create, modify, or delete alias definitions.

  • Partial CSV updates are not supported. A full upload replaces the existing alias definitions.

  • Alias synonyms, worksheet parameters, and set-level aliasing are not supported.

  • The maximum alias count per cluster is 500,000.
